STITCHmaster - Single G8 is a Single-Headed Programmable Stitcher for low cost, high quality alternative to saddle stitching.
High quality outputHigh speed Low costLow running cost
STITCHmaster - Single G8
| Perfect For.. | Side Stitching, Books, Brochures, Centre Stitching, Saddle Stitching Alternative, Pads, Books up to 8mm depth |
STITCHmaster Operation Described
- Gathered papers, pads or book sections are manually fed into the STITCHmaster in open form before folding.

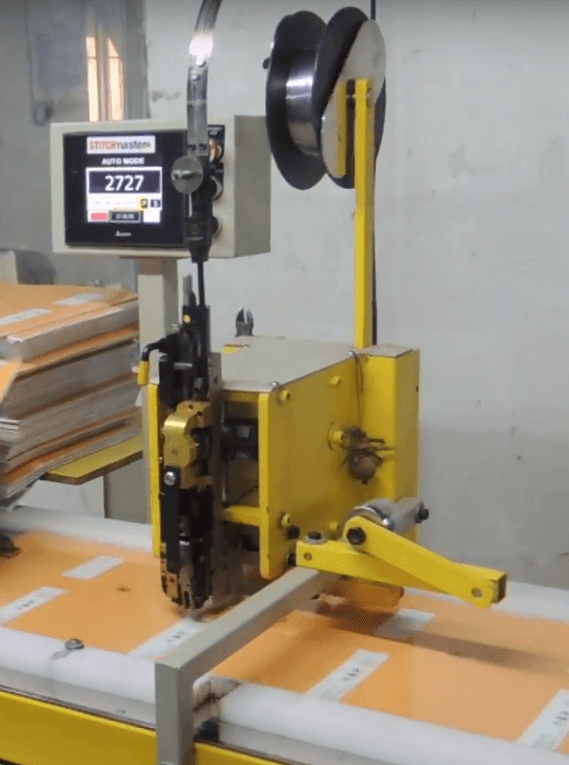

- The length of book, number of stitches required and the exact distance between stitches is programmed into the touch screen panel. (Up to 20 Programmes can be stored and retrieved)

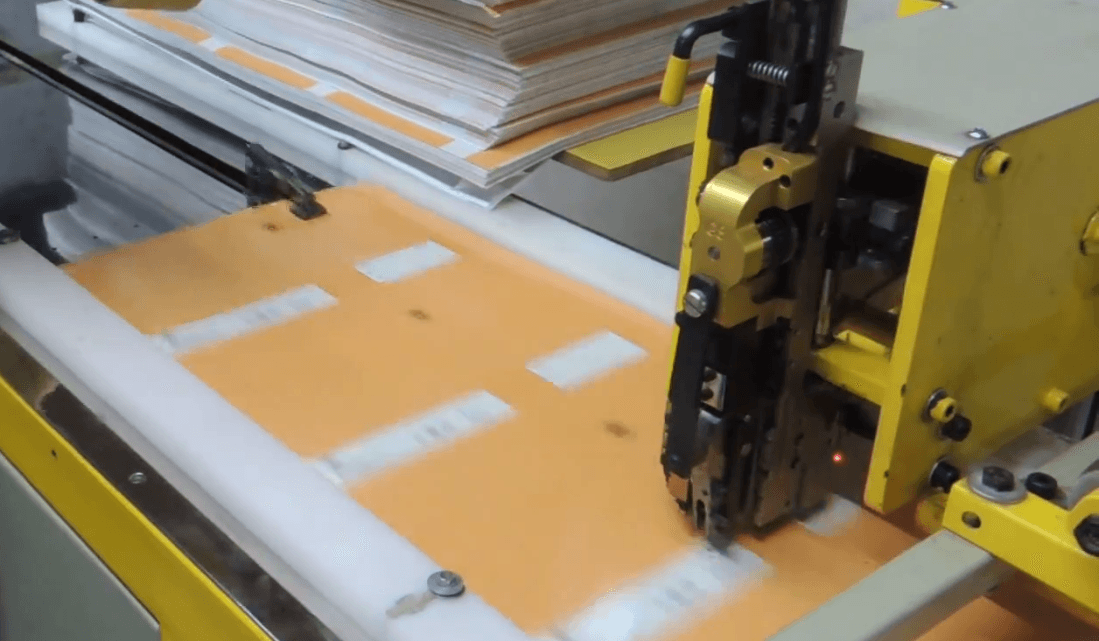

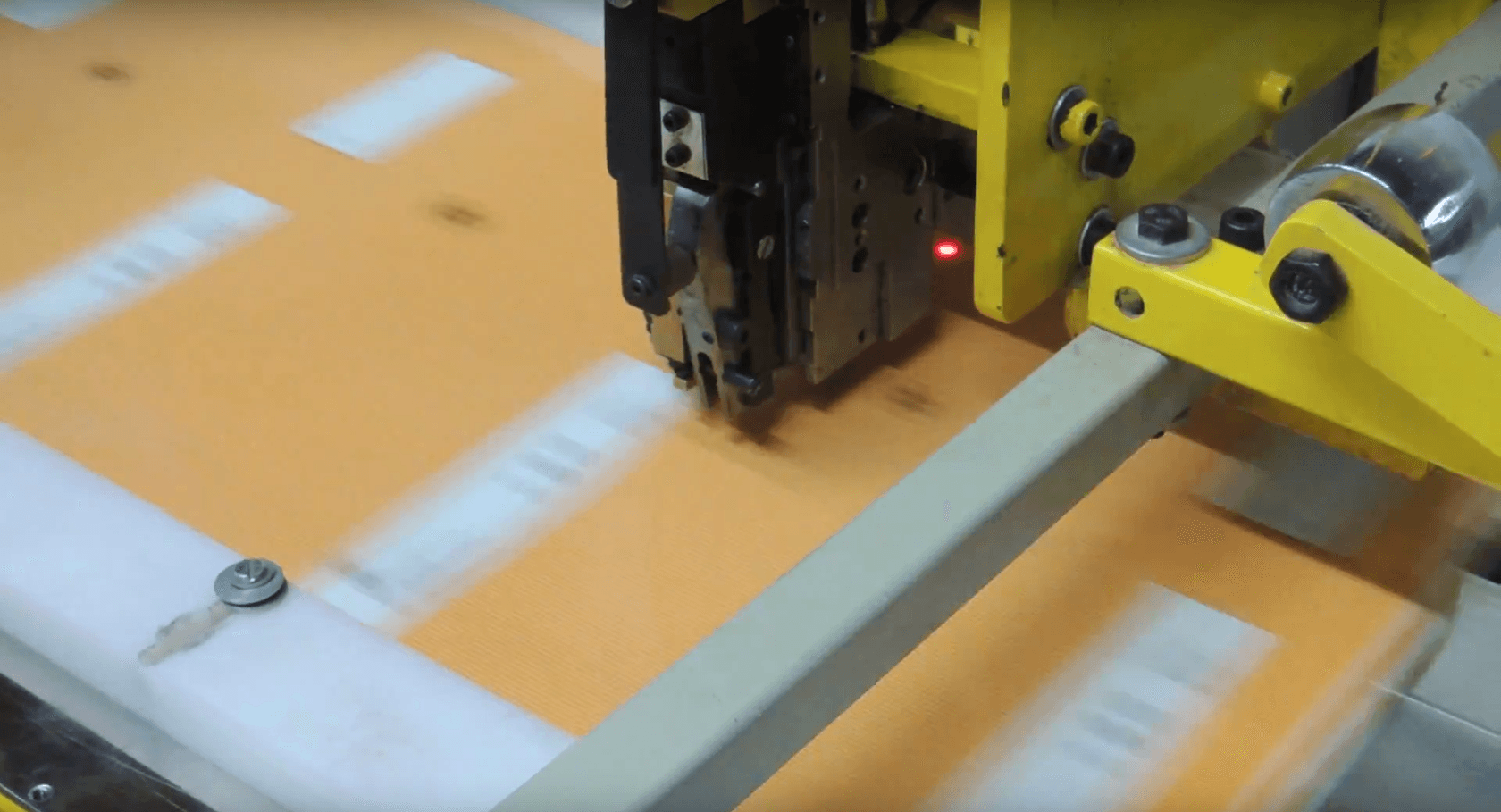

- The gripper jaw takes the papers/pad/book and to the exact positions for stitching, as per the programme set above. The stitches are perfectly finished by exact placement and by pre-defined micro-pauses allowing for the stitcher head to complete its function as per its specification. Up to 24 stitches can be one placed in each pad or book section.
- The stitched pads or books are then carried forward for further processing with another integated modular machine (such as TAPEmaster or FOLDmaster) or manually handling.
| Stitcher Heads | Single G8 Stitcher Head |
| Speed | up to 30 Sections / Minute |
| Book Length | max. 930mm – min. 90mm |
| Book Width | max. 480mm – min. 210mm (Centre Stitching) |
| Power Consumption | 2 Kw, Single Phase |
| Book Thickness | max. 8mm – min. 2 Paper Sheets |
| Wire | 23-28 round, 24 guage is standard 20x24, 21x25 flat |
| Exact position of Stitches | Programmable |
| Maximum Stitches per section | 24 |
