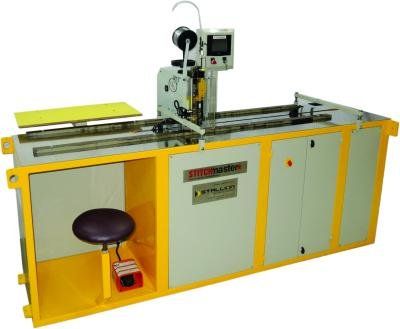

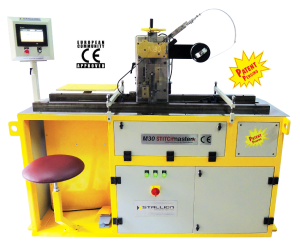

STITCHmaster - M30 Single is a Programmable Pad Stitcher, for heavy duty wire side stitching with a single stitcher head, and a huge variety of stitching work including books. The Stitchmaster range is designed to be the very best wire stitcher for printed pads such as single sheet pads, duplicate carbon pads, carbonless pads, message pads, government forms, voting pads and the like. Pads like these typically require a number of wire staples in each page, and STITCHmaster achieves this effortlessly and efficiently, consistently stitching each pad exactly as designed. This version of STITCHmaster - M30 Single can stitch a pad to a maximum thickness of 30mm.
High quality outputHigh speed Low costLow running cost
Stitchmaster Pad Stitching - What will it do for me?
Your finished product must look and feel great. Quality is really important - after all it's probably got your company's name on it! But traditional techniques for binding pads are labour intensive and low-tech; they can't deliver consistent quality, and they are not very fast (although they may be cheap). Mechanised binding and stitching has been around for a long while, but only on large machines designed for very high volume runs.
Stitchmaster is new and different. It's a programmable stitcher that's easy to set up and is effective even for short runs. It delivers consistent high quality at reliable high speeds. Stitchmaster costs a fraction of large binding systems and so that it can deliver higher quality, reliability at high speed for about the same price. You don't have to accept yesterday's low-tech./low quality processes any longer.
You want to delight your Customers, deliver great service, meet their deadlines and produce high quality products ... at the right price. That's why its time to consign traditional pad stitching processes to the past: They require to many people and too much time, they are slow, the quality is hit and miss and a consistent finish is impossible. You've known this for a while, but the previous generation of mechanical pad stitchers were really expensive, difficult to set up and only suited to very long runs.
Stitchmaster is completely different. Stitchmaster is a combination of reliable components matched with a simple programmable interface to deliver swift set up, consistent high quality (that you couldn't achieve before) and high throughput. Stitchmaster will give you a productivity and quality edge over competitors who are still hanging on to the old way of doing things.
You need to be on top of all Bindery issues, making sure that work is the right quality, on time and on budget. But, when it comes to productivity and reliability, traditional pad stitching techniques are a problem. They take time and people, and the quality is hit and miss. Each stitch requires a millisecond delay for the stitch-head to finish properly, but that's impossible for even the most skilled operator to control manually. Rework and delays are common and they just add cost and hassle. Estimating the time needed to stitch pads is difficult, and that causes problems with costing and work schedules in the Bindery department.
Stitchmaster is completely different approach. Stitchmaster is a combination of reliable components matched with a simple programmable interface to deliver a system that can be set-up quickly and operated by one person. It delivers consistent high quality (which you couldn't achieve before) and high throughput (which runs at predictable high speed so its easy to schedule work). Stitchmaster will give you a productivity and quality edge over others who are still hanging on to the old way of doing things.
Perfect For..
Pads, Padding Line, Side Stitching, Pads to 30mm depth
Gathered papers, pads or book sections are manually fed into the STITCHmaster in open form before folding.
The length of book, number of stitches required and the exact distance between stitches is programmed into the touch screen panel. (Up to 20 Programmes can be stored and retrieved)
The gripper jaw takes the papers/pad/book and to the exact positions for stitching, as per the programme set above. The stitches are perfectly finished by exact placement and by pre-defined micro-pauses allowing for the stitcher head to complete its function as per its specification. Up to 24 stitches can be one placed in each pad or book section.
The stitched pads or books are then carried forward for further processing with another integated modular machine (such as TAPEmaster or FOLDmaster) or manually handling.
